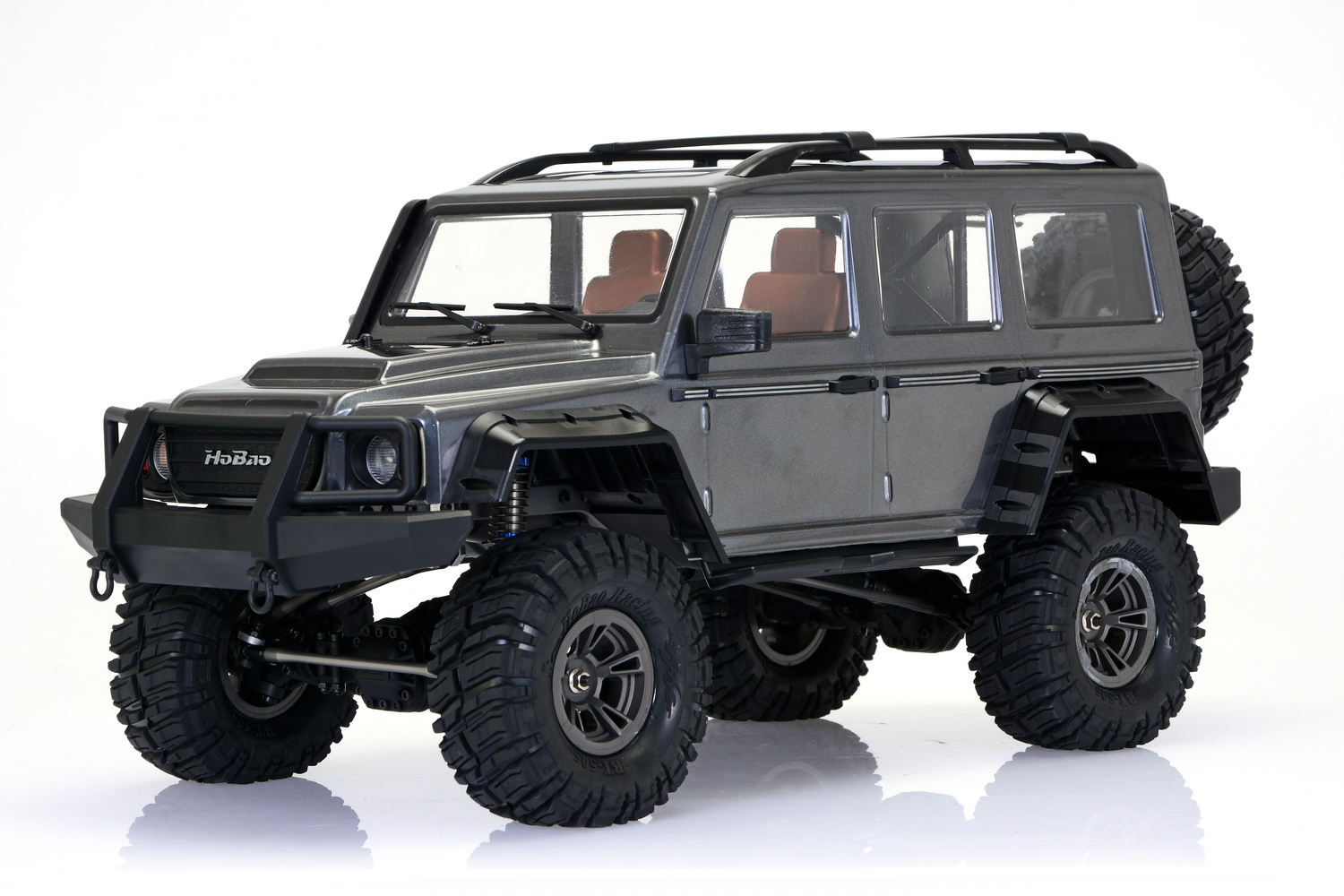

Hobao DC1 1/10 Trail Crawler Kit w/Clear Body
| FEATURES |
Chassis: CNC machined aluminum one-piece, high ground clearance design
Drive: Four wheels with metal links and heavy duty, slider style center driveshafts, steel gears and locker on each axle, universal CVA front driveshafts
Shocks: Aluminum body oil-filled
Suspension: Four link front and rear
Transmission: 32 pitch steel gears with heavy duty slipper clutch servo controlled 2-speed transfer system
Body: Clear, detailed semi-scale with detailed interior and molded accessories
Steering Servo Mount: Panhard rod
Tires: Offroad tread 4.5″ (114mm) diameter, 1.7″ (43mm) wide
Wheels: Gray plastic 1.1″ (28mm) wide, 1.9″ (49mm) diameter, 12mm hex
| INCLUDES |
DC-1 Trail Truck Kit with Clear Body, Tires, Foam Inserts, Wheels
Decals, Shock Oil, 32P 15T Pinion Gear, 32P 56T Spur Gear and
Instruction Manual
| REQUIREMENTS |
Radio: 3-channel
Steering Servo: High torque
Motor and ESC: For 1/10 scale rock climbers
Battery Pack: 7.2V NiMH, OR 7.4V – 11.1V LiPo
Battery Charger: Compatible with selected battery
Paint, building and trail equipment
| SPECIFICATIONS |
Vehicle;
Length: 22″ (559mm)
Width: 17″ (432mm)
Height:10″ (254mm)
Battery Tray Dimensions: 5.3 x 1.9″ (135 x 48.2mm)
Body;
Length: 18.7″ (475mm)
Width: 7.4″ (187mm)
Height: 6.1″ (154mm)
